UT-TR01 RF Demonstration Board

Uni-Trend USSKU: 191700100029X

Price:
$ 1,101.45

Shipping calculated at checkout

Description

Overview

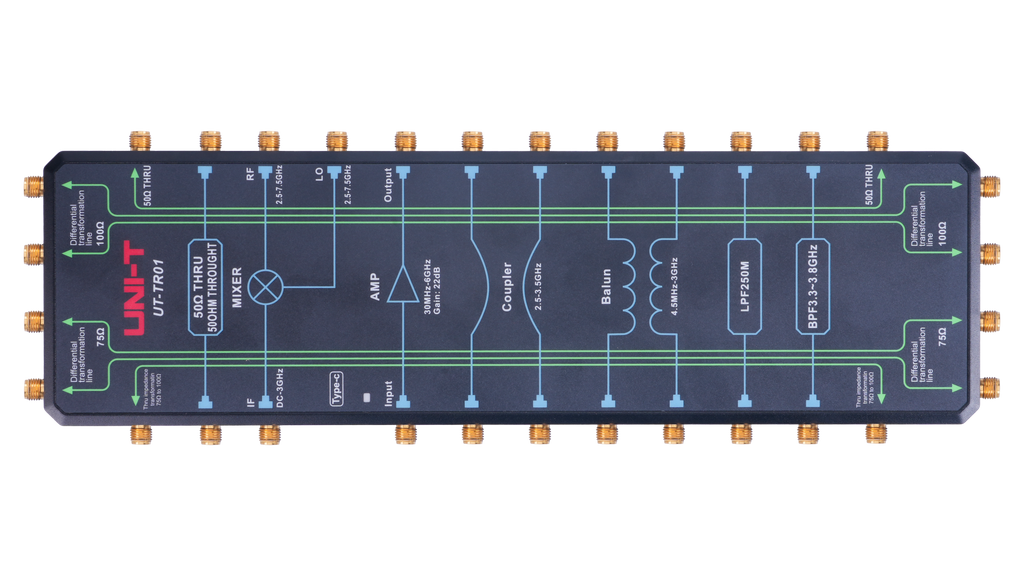

The UT-TR01 is an RF teaching and demonstration board that puts common RF building blocks on one board, each brought out to SMA connectors. It supports single-ended and differential experiments and is intended for university laboratories, engineering training and R&D verification.

Students can sweep a filter, measure an amplifier's gain, drive a mixer or check a coupler's port behaviour with the same bench instruments they will use in practice.

Key Features

  • Mixer — RF and LO ports 2.5–7.5 GHz, IF port DC–3 GHz.
  • Amplifier — 30 MHz–6 GHz, 22 dB typical gain at 1 GHz, powered over USB Type-C.
  • Directional coupler — 2.5–3.5 GHz, with input, output, coupled and isolated ports.
  • Balun — 4.5 MHz–3 GHz, for single-ended to differential conversion.
  • Filters — 250 MHz low-pass and 3.3–3.8 GHz band-pass.
  • Transmission lines — 50 Ω short and long through lines, 75 Ω and 100 Ω differential microstrip, and a 75 Ω to 100 Ω impedance transformation line.
