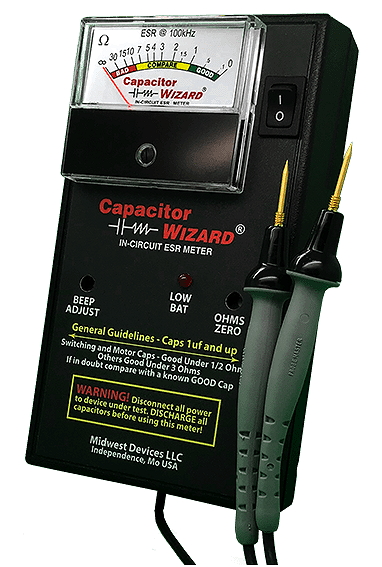

Capacitor Wizard ESR Tester with CapSVR Module

Midwest

  • $ 21695


The Capacitor Wizard® meter with Cap SVR protection built in which helps protect against accidentally damaging the Capacitor Wizard® when attempting to test charged capacitors. This combined product is a very useful capacitor quality analyzer for capacitors >1uF. It uses the ESR (equivalent series resistance) method for determining a capacitors' health. The ESR method detects problems with a device due to changes in the dielectric constant or the electrolytic compound drying out. This is an indispensable piece of test equipment for a system designer or product technician!

Specifications :

  • Meter Range: 0 to 30 Ohms Expanded Scale
  • Output Test Signal: 100kHz Sine Wave
  • Output Voltage: Only 5 mV RMS! - will NOT turn on solid state devices
  • Meter input resistance: 2.5 Ohm - Resolution as low as 0.1 Ohm

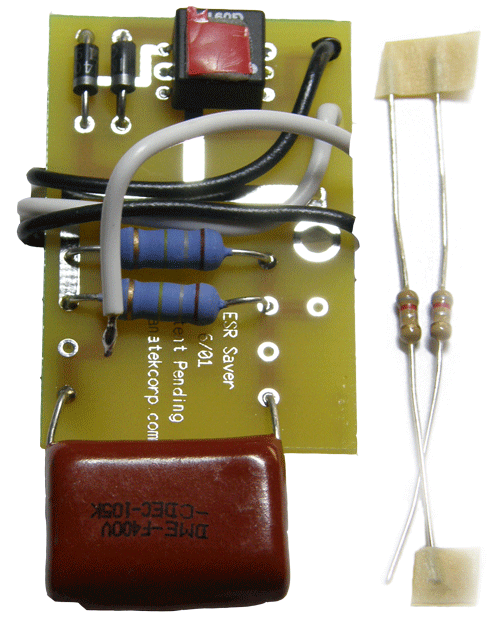

  • Includes the overvoltage "CapSVR" module already built-in
  • Adjustable "Capacitor Good" beeper-Beeper Resolution as low as 50 milli Ohm!
  • Power: 4 AA Alkaline batteries(not included)
  • Size 7" x 4" x 1.5"
  • High quality gold plated probe tips with 4 foot leads
  • Ohms-Zero and Beeper-Adjust controls
  • UL and ULC (UL3111-1 )
  • CE European Standard EN-55022 and EN-50082-1
  • Capacitance range - caps below 1uF start to lose resolution, but it is still useful in repair work. There is no limit for large caps. with the cap wizard
