Description
Overview

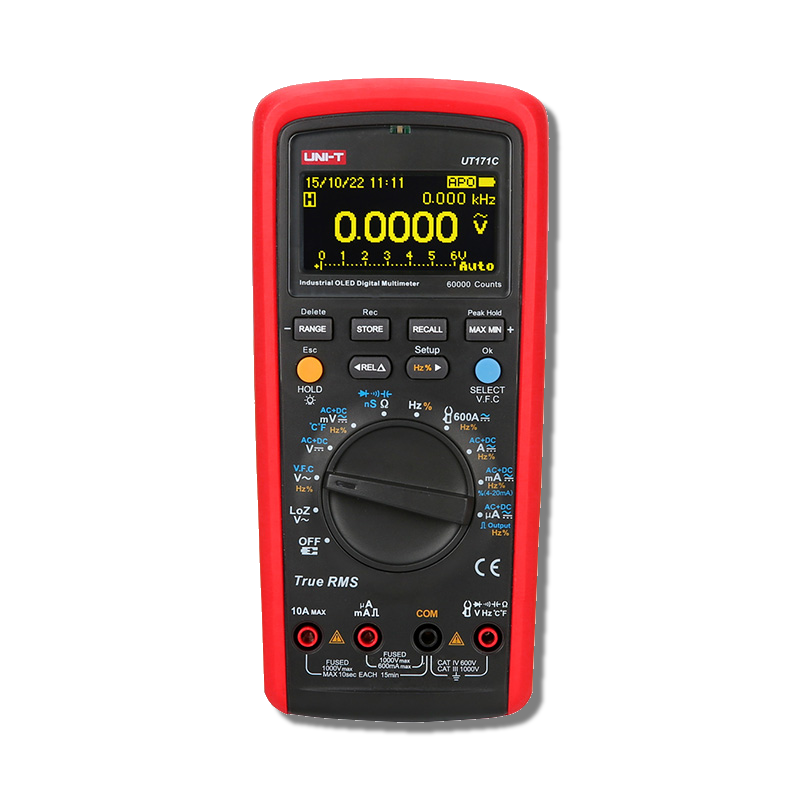

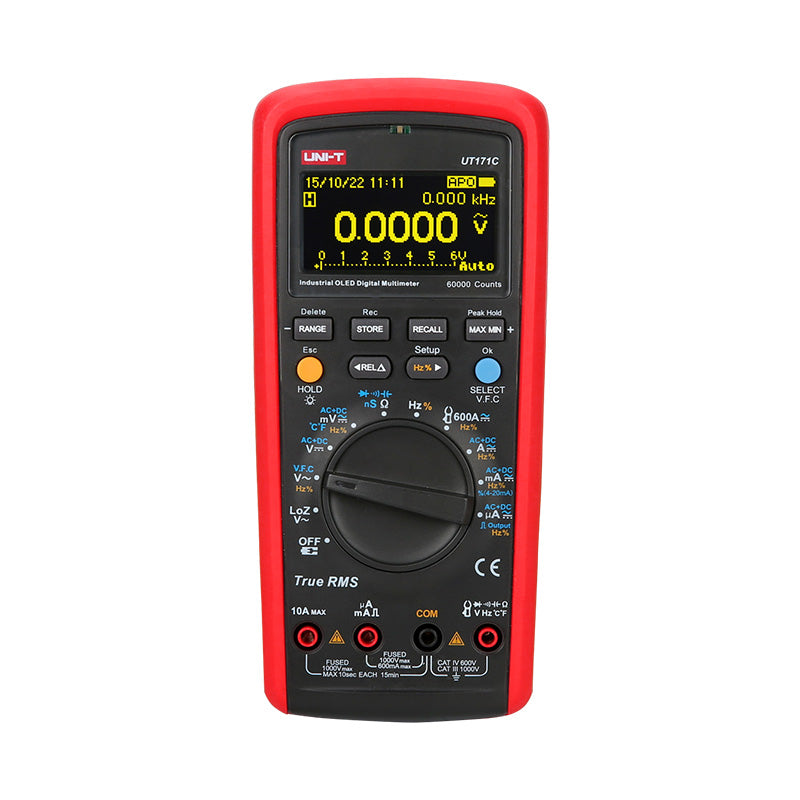

The UT171C is the OLED version of UNI-T's 60,000-count industrial True-RMS multimeter, rated CAT III 1000 V / CAT IV 600 V. The OLED display gives deep contrast and a wide viewing angle in any light, and the meter adds a square-wave output for testing and calibration alongside the full industrial measurement set.
Measurement matches the rest of the series: DC voltage to ±(0.025%+5), AC and DC current to 10 A, resistance to 60 MΩ, capacitance to 60 mF, frequency to 10 MHz, and temperature to 1000 ℃, with True-RMS, a low-impedance ACV mode, and 9999-reading storage. A rechargeable Li-ion pack and 1 m drop rating keep it field-ready. It's backed by UNI-T's nearly 40 years of test-meter manufacturing.
Key Features
- 60,000-count resolution with OLED display
- Square-wave output for test and calibration
- True-RMS AC voltage and current; AC bandwidth to 100 kHz
- DC voltage accuracy ±(0.025%+5)
- AC/DC current to 10 A; resistance to 60 MΩ, capacitance to 60 mF
- Frequency to 10 MHz; temperature −40 ℃ to 1000 ℃
- Low-impedance (LoZ) ACV mode to reject ghost voltages
- 9999-reading storage
- CAT III 1000 V / CAT IV 600 V; 1 m drop; rechargeable Li-ion
UT171C Details
OLED Display
The OLED screen delivers deep contrast and a wide viewing angle that stays legible in bright sun and dim equipment rooms alike — a step up in readability for fast plant-floor work.
60,000-Count True-RMS Measurement
The 60,000-count display resolves fine detail, and True-RMS sensing keeps AC accurate on the distorted waveforms around drives and electronic loads where average-responding meters read low.
Square-Wave Output
A built-in square-wave output supports quick functional checks and calibration tasks in the field without a separate signal source.
Safe Measurement & Field Build
A low-impedance ACV mode loads out induced ghost voltages so a dead circuit reads dead, the CAT III 1000 V / CAT IV 600 V rating covers distribution work, and a rechargeable Li-ion pack with a 1 m drop rating handles daily use.
Compare the UT171 Series
| UT171B | UT171C | |
|---|---|---|
| Display | EBTN | OLED |
| Square-wave output | — | Yes |
| Non-contact voltage (NCV) | Yes | — |
Applications
Plant and process troubleshooting; drive and control-panel work; commissioning and preventive maintenance; and any task where an OLED display and a square-wave output add value to a 60,000-count industrial meter.
Frequently Asked Questions
What does the UT171C add over the UT171B?
An OLED display and a square-wave output. Measurement performance — 60,000 count, True-RMS, ranges, and accuracy — is the same.
Is the display readable outdoors?
Yes — the OLED screen holds contrast across viewing angles in bright and low light.
Is it True-RMS?
Yes, on both AC voltage and current.
Specifications
| DC Voltage | 1000 V, ±(0.025% + 5) |
| AC Voltage | 1000 V, ±(0.4% + 40) |
| DC Current | 10 A, ±(0.15% + 10) |
| AC Current | 10 A, ±(0.75% + 20) |
| Resistance | 60 MΩ, ±(0.05% + 2) |
| Admittance | 60 nS, ±(1% + 10) |
| Capacitance | 60 mF, ±(2.5% + 5) |
| Frequency | 10 Hz to 10 MHz, ±(0.01% + 5) |
| Temperature | -40 ℃ to 1000 ℃, ±(1% + 3) |
| Display Count | 60000 |
| Display Type | OLED |
| True RMS | Yes |
| AC Bandwidth | 100 kHz |
| LoZ (ACV) | Around 3 kΩ |
| Input Impedance (DCV) | ≥10 MΩ |
| Data Storage | 9999 readings |
| Power | 7.4 V 2000 mAh Li-ion (rechargeable) |
| Safety Rating | CAT III 1000 V, CAT IV 600 V |
| Drop Protection | 1m |
| Dimensions (W × H × D) | 206 × 95 × 55 mm |
| Weight | 384 g |
