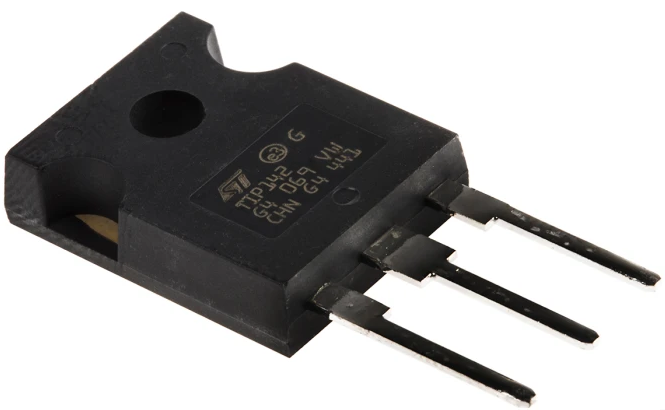

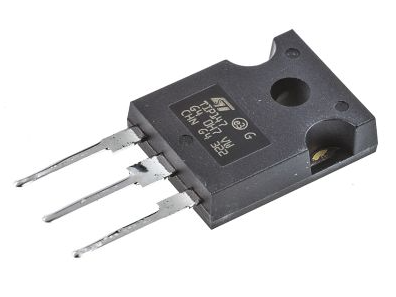

Matched Pair TIP142 (NPN) + TIP147 (PNP) Darlington Power Transistors

TransistorSKU: TIP142_TIP147

Precio:
$ 12.95

Gastos de envío calculados en la caja

Descripción

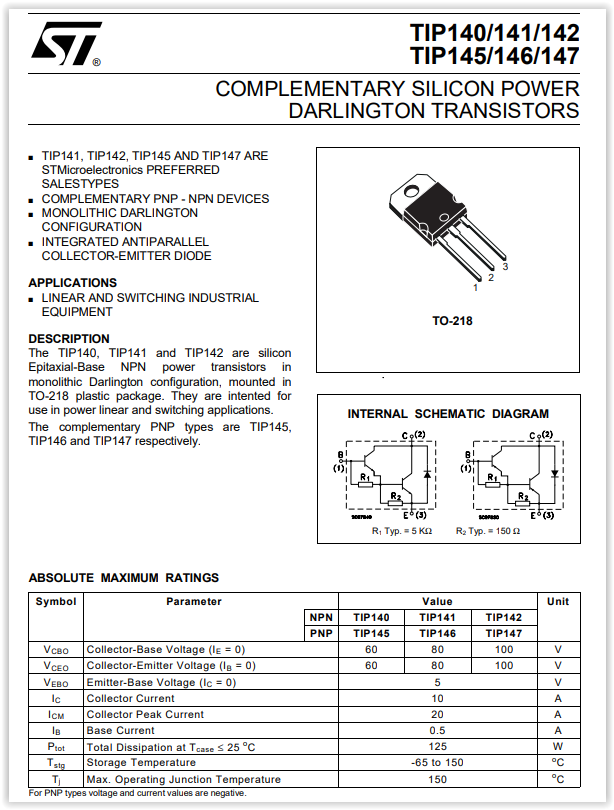

The TIP142/147 Matched Hfe and Vbe Pair are complementary power NPN/PNP Darlington transistors featuring a monolithic configuration, a high DC current gain, and an integrated antiparallel collector-emitter diode. It handles up to 100V and 10A, making it ideal for high-power linear and low-frequency switching applications. In push-pull amplifier output stages, unmatched NPN/PNP pairs can cause crossover distortion, uneven current sharing, and quiescent-current drift. This pair has been individually tested and selected so the base-emitter voltage (Vbe) of the NPN and PNP devices are closely aligned - reducing guesswork when biasing your amp.
