DCL11R | True RMS Mini Clamp Meter with Backlight

Sanwa-America.comSKU: DCL11R

Precio:
$ 157.72

Gastos de envío calculados en la caja

Descripción

The DCL11R is a compact clamp meter with True RMS capability.

The DCL11R clamp meter allows users to measure the current range specified in IEC61010-1 CAT. III 300V. It is suitable for measuring the current of low-voltage power lines and electrical appliances. The clamp sensor in this instrument has a maximum input current rating of 320 Amperes with a max overload protection of 350 Amperes. The device comes with a 6000-count display with backlight functionality which extinguishes after 10 seconds of use. It also features the hold function that allows users to pause a reading on the screen.

The meter operates on 2x AAA batteries with a power consumption of 1.9mA, and provides a use time of approximately 500 hours.

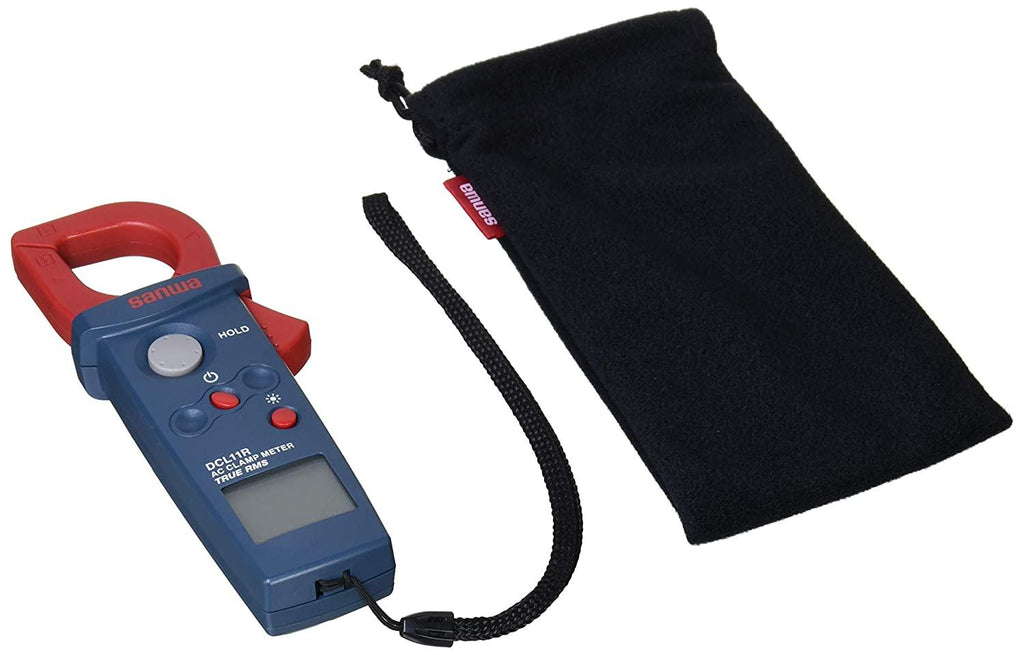

Includes meter, pouch, carry strap and instructions

  • Compact, pocket size clamp meter
  • True RMS conversion
  • 6000 Count Display
  • Maximum Input current rating 320A
  • Auto power off
  • Backlight
    Function Range Accuracy Resolution
    ACA 60/300A ±(2.0%+5) 0.01A
    Sampling rate Approx. 2 times/sec.
    Bandwidth 45-400Hz
    Display 6000
    Clamp diameter/Conductor size 22mm/10x25mm
    Battery LR03x2
    Battery life Approx. 500 hrs.
    Size/Mass H145xW54xD31mm/Approx. 120g
    Safety standards IEC61010 CATIII300V
