Descripción
Measures electro magnetic fields of extremely low frequency (ELF) from electrical power lines and transmission equipment, appliances, computer, HVAC, audio/video, and other electrical equipment.
Simply approach the source at any angle and the triple-axis meter automatically determines EMF (electro magnetic frequencies), eliminating the need for additional calculations. X, Y and Z axis results can also be viewed independently. While the evidence of adverse effects of electromagnetic emissions is still inconclusive, prudent avoidance is recommended to avoid excess exposure over long periods of time.

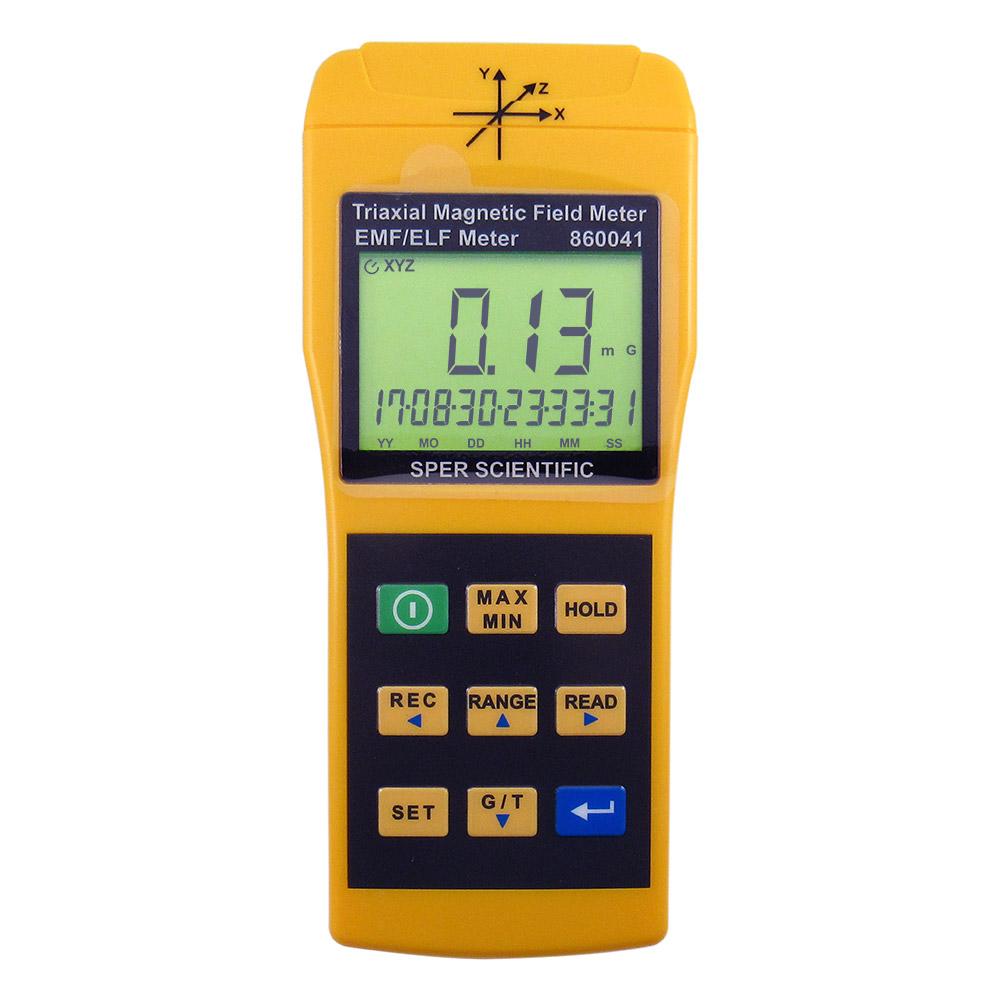

Automatically or manually log results with time and date stamps. Holds up to 500 readings which can be reviewed on screen. Features manual or auto ranging, mG (milli-Gauss) and µT (micro-Tesla) scales, min/max and hold functions. The meter has tripod screws and a large 3-line display indicating when the battery is low or is reading over range.

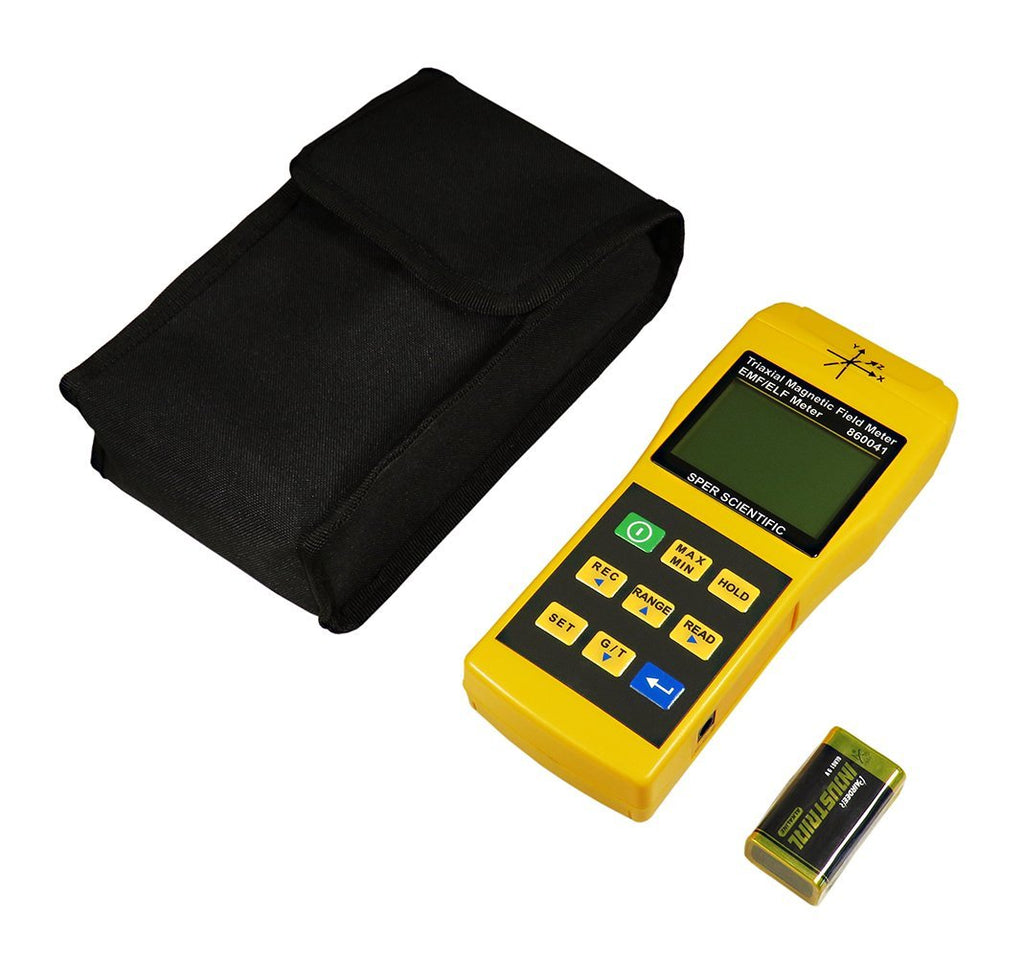

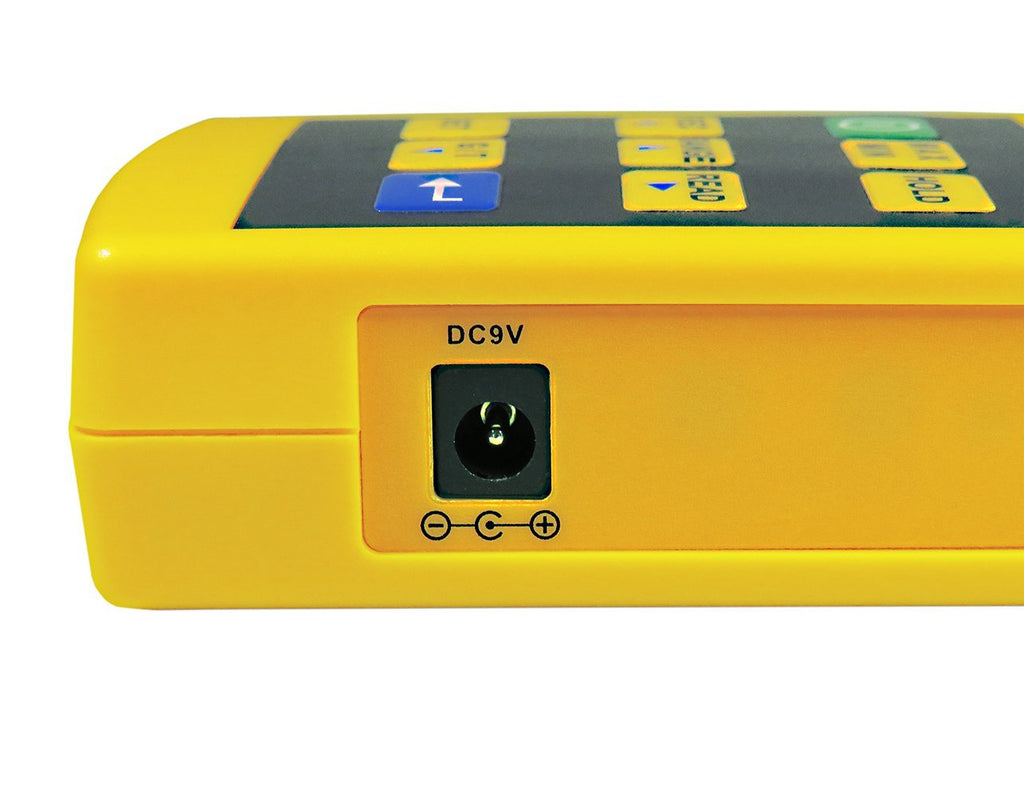

Comes ready to use in a soft carrying case, instructions and a 9V battery that lasts approximately 100 hours.
Dimensions: 7½” x 3¼” x 1¼" (185 x 85 x 35 mm)
Weight: 8 oz (230 g)
Specifications
| Unit of Measure | Range | Resolution | Accuracy |
| milli-Gauss | 20 | 0.01 | 20 mG ±(3% + 30 dgt) at 50/60 Hz |
| 200 | 0.1 | 20 mG ±(2.5% + 30 dgt) at 50/60 Hz | |
| 2000 | 1 | 20 mG ±(5% + 30 dgt) at 30/2000 Hz | |
| µTesla | 2 | 0.001 | 2 µT ±(3% + 30 dgt) at 50/60 Hz |
| 20 | 0.01 | 2 µT ±(2.5% + 5 dgt) at 50/60 Hz | |
| 200 | 0.1 | 2 µT ±(5% + 5 dgt) at 30/2000 Hz |
| Display: | 3-row display with 4-digit reading | |
| Frequency Response: | 30 to 2000 Hz | |
| Sampling Rate: | 2.5 times per second | |
| Operating Temp: | 5 to 40°C | |
| Operating RH: | 80% RH | |
