Descripción

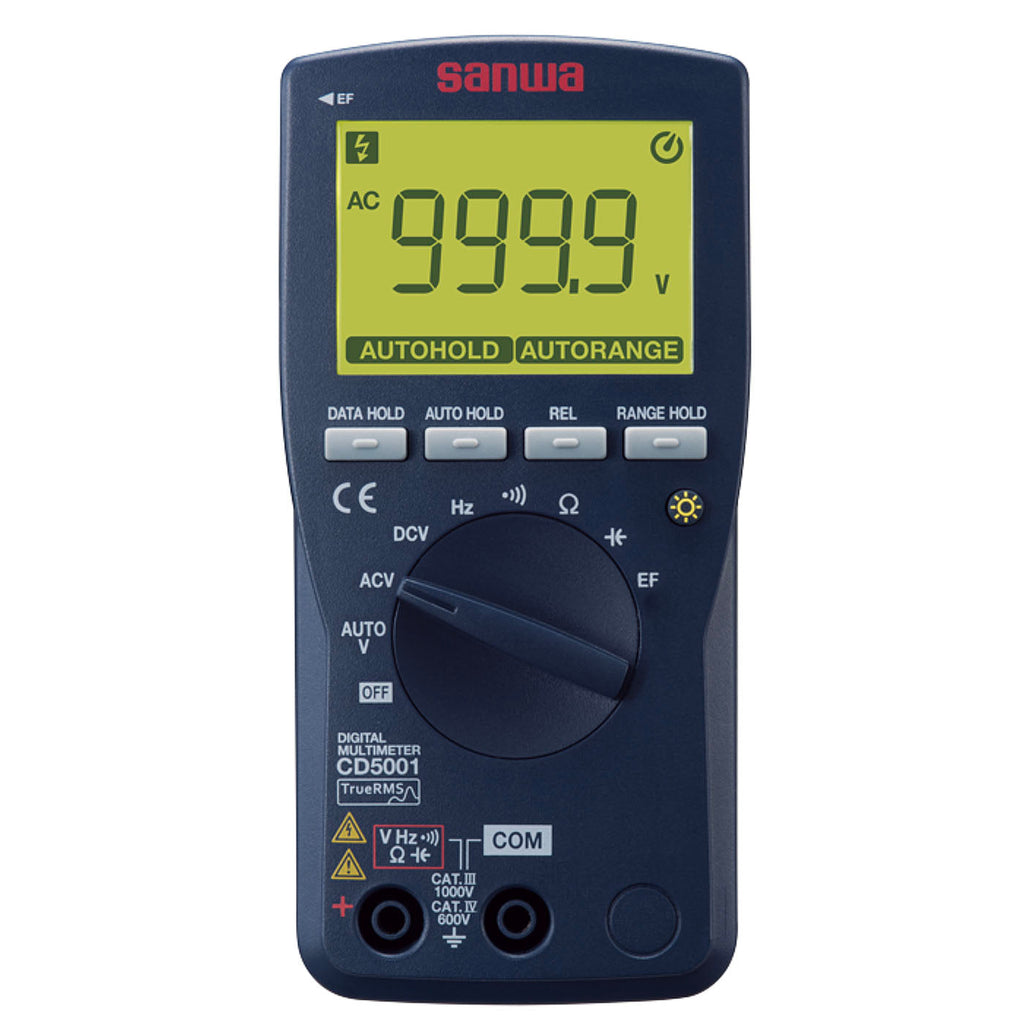

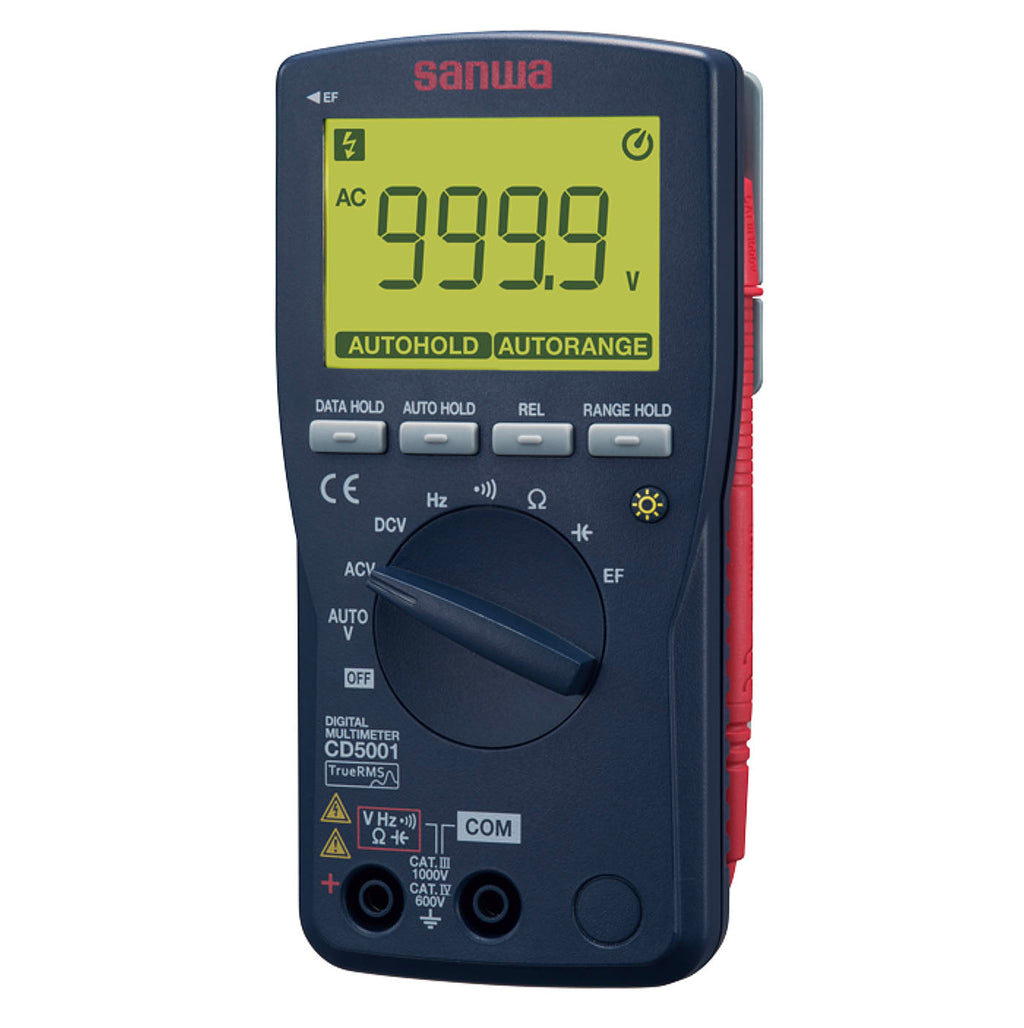

The all-new SANWA CD5001 is a professional grade, true RMS digital multimeter designed for precise and reliable measurements in low-voltage electrical work.
With a robust CAT. IV 600V and CAT. III 1000V rating, it ensures safety and accuracy in demanding environments. It features true RMS and EF (Electric Field) sensing for accurate readings, a full 4-digit 9999 count display, and an auto voltage function that distinguishes between DC and AC voltage. With its compact design, large display and advanced functionality, this multimeter is a solid and reliable tool for professionals and hobbyists alike.
- True RMS Accuracy: Delivers precise readings for both sinusoidal and non-sinusoidal signals.
- Full 4-Digit 9999 Count Display: Provides high-resolution measurements.
- EF (Electric Field) Sensing: Detects electromagnetic fields for enhanced troubleshooting.
- AUTO V Function: Automatically identifies AC or DC voltage for seamless operation.
- Auto Hold Function: Stabilized measurements are held automatically for easy recording.
- User-Friendly Design: Large, backlit display for readability and a lightweight, ergonomic build for comfort.
- Auto Power Off: Conserves battery life by shutting down after 30 minutes of inactivity, with an option to disable.
Specifications
| CD5001 | Measuring Range | Accuracy | Resolution | Input Impedance |
|---|---|---|---|---|
| DCV | 999.9m/9.999/99.99/999.9V | ±(0.5%+2) | 0.1mV | 10M～11MΩ |
| ACV | 999.9m/9.999/99.99/999.9V | ±(1.0%+5) | 0.001V | 10M～11MΩ |
| Resistance | 999.9/9.999k/99.99k/999.9k/9.999M/99.99MΩ | ±(0.5%+5) | 0.1Ω | |
| Capacitance | 999.9n/9.999μ/99.99μ/999.9μ/9.999m/99.99mF | ±(5%+5) | 0.1nF | |
| Frequency | 9.999/99.99/999.9/9.999k/99.99kHz | ±(0.1%+5) | 0.001Hz | |
| Continuity | Buzzer sounds at 30 to 70Ω or less. Open voltage: approx.0.6V | |||
| EF Detection | Detects ACV and EF of approx. 80V or more | |||
| Display | Numeral display 9999 |
| Sampling rate | 5 times/sec. |
| Bandwidth | 40～400Hz（Sine wave) |
| Battery | LR03x2 |
| Battery life | Approx. 550h at DCV range |
| Size/Mass | H149×W72×D37mm/Approx. 232g |
| Safety standards | IEC61010 CAT.IV600V/CT.III1000V |
